| Ask Lasest Price | |
| Brand Name : | OEM |
| Model Number : | HG-XX800-5 |
| Price : | $800-$2500/set |
| Payment Terms : | T/T, Western Union,paypal |
| Supply Ability : | 100 Set/Sets per Month |
| Delivery Time : | 7 workdays |
Plastic spot welder of handheld, 300w to 800w, 15khz to 40khz
Technical Data
| Power | 300w,500w,800w,1500W |
| Voltage | 220V/50Hz 110V/60Hz |
| Output Frequency | 20khz/28kHz/35kHz/40kHz |
| Cohesion Specification | 1-20mm/any shape and pattern |
| Cooling mode | Fan cooling |
| Welding material | PP/PE/PET/ABS/ACRYLIC/PVC/FABRIC/NON-WOVEN CLOTH/NYLON |
| Working mode | Separated excited |
| Volume | 268*168*198mm(L*W*H) |
| Welding pressure | 5-6kgs/cm2 |
| Net weight | 10KG |
| Gross weight | 15kgs |
Note: The parameter herein stated is manually measured, the actual machine has possibility in little difference, if have crucial demand in its application, please double check with our sales, only paper confirmed will be regarded as contracted obligation

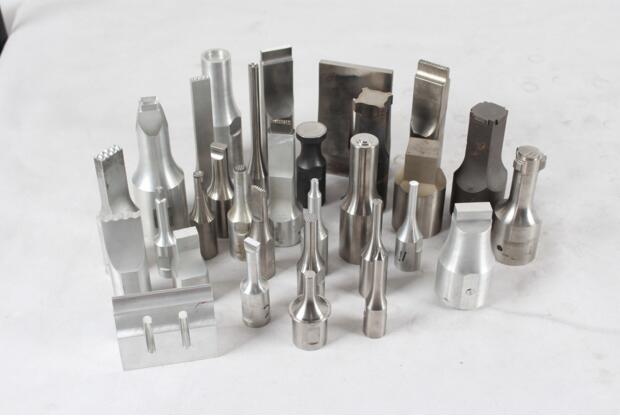

Horns
Advantages of ultrasonic cutting machine
1.Greatly reduced normal down time for clean up
2.Does not smear the cut surface
3.Cuts cleanly through various densities and consistencies of products with filler materials
4.Cutting speeds can be increased substantially
5. Wider cutting temperature range
6.Flexibility in adapting the Cheersonic Ultrasonics cutting equipment to existing conventional slitting and cutting equipment.

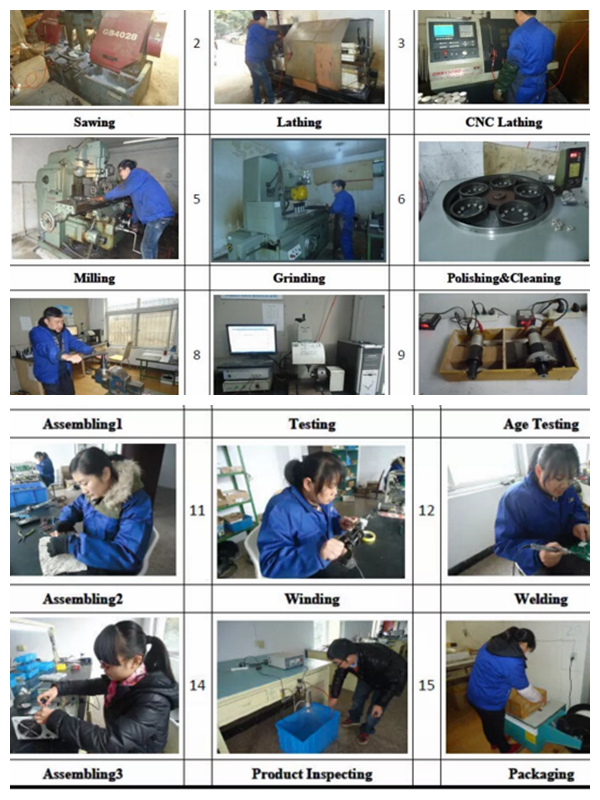

Process :
Package :
|
|
